  1. Guides
  2. Onsite Widgets (2.0)

Styling Waterfall Widget

PreviousStyling Masonry WidgetNextStyling Widget Expanded Tile

Was this helpful?

Overview

This article will instruct you on how to custom style a Waterfall Widget using Custom CSS. If you're looking to customise a widget using our Javascript API - you can find the documentation .

Use the Code Editor

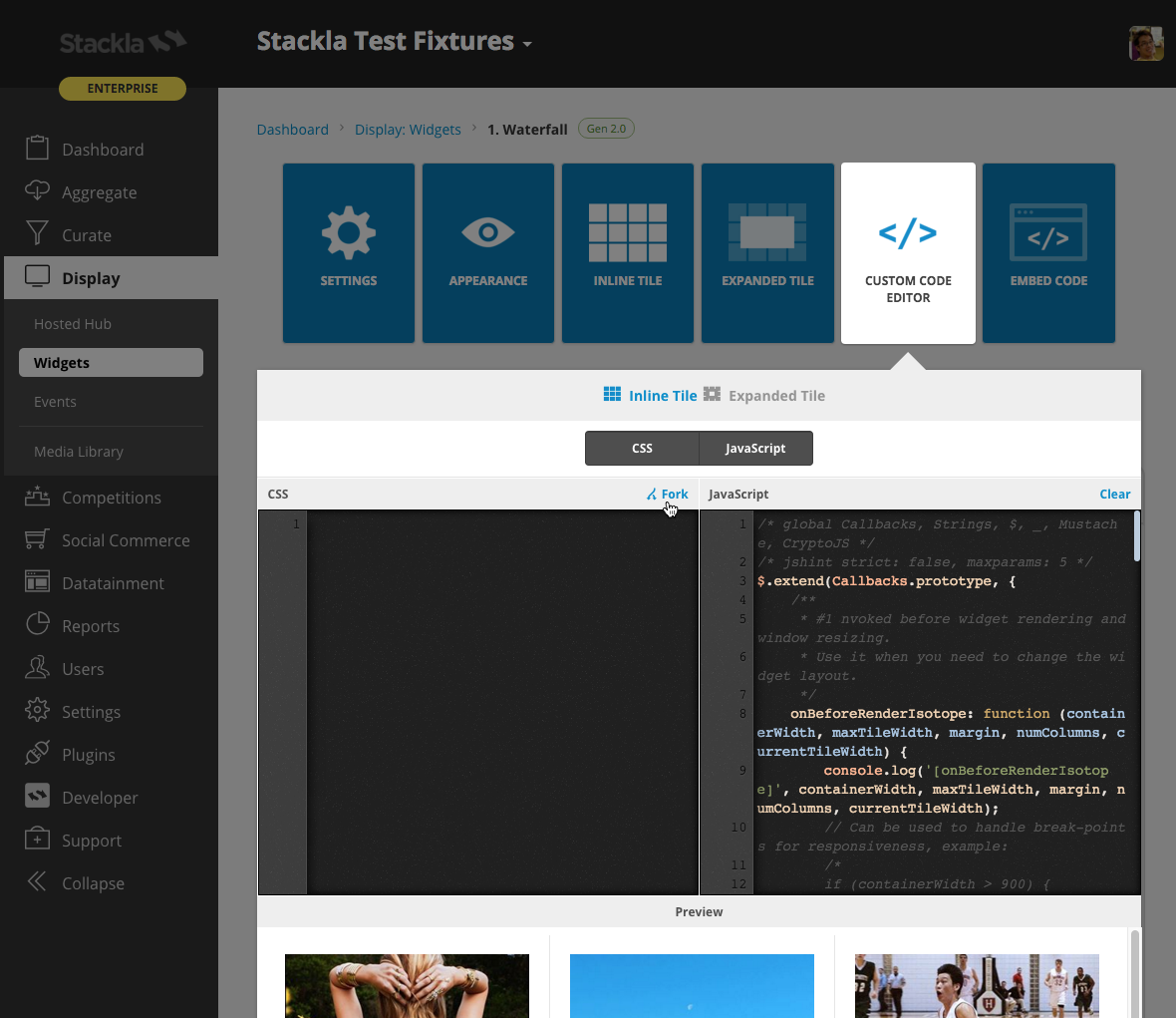

You can use the Code Editor to modify both your Custom CSS and JavaScript. The CSS editor supports . That means you can use both traditional CSS syntax or the better LESS syntax.

Fork from Nosto's UGC

You can now also click the fork link at the top-right corner of each editor pane. This brings the boilerplate code from the Nosto's UGC codebase so that you don't need to write from scratch or copy & paste from our Developer Portal.

Layout Structure

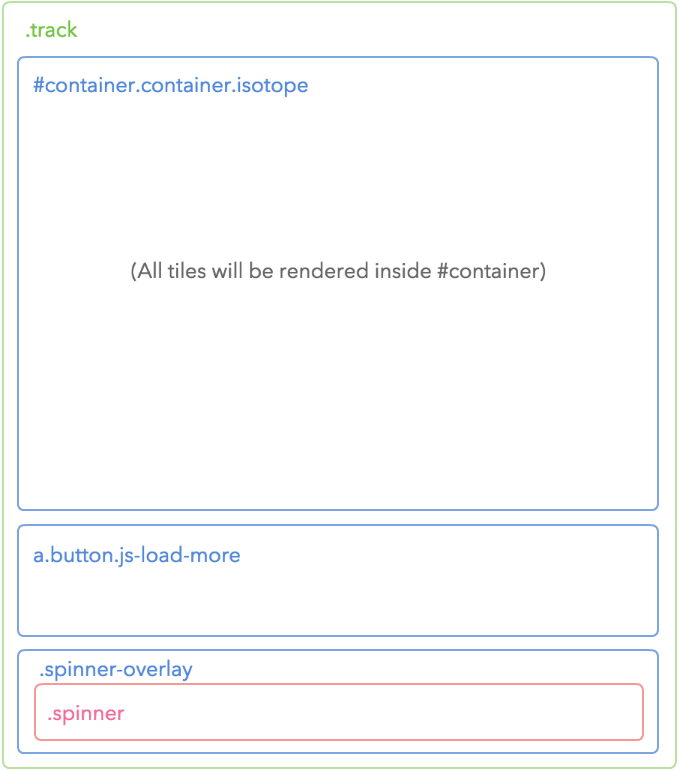

The below Layout demonstrates the wrappers of our Widget tiles.

|

Diagram

|

Code

<!DOCTYPE html>
<html class="csstransforms csstransforms3d csstransitions js no-touch">
<head>...</head>
<body>
<div class="track">
<div id="container" class="container isotope">
<!-- All tiles will be appeneded to here -->
</div>
<a class="button js-load-more">Load more content</a>
<div class="spinner-overlay">
<div class="spinner"></div>
</div>
</div>
</body>
</html>

| | ------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |

Possible Scenarios

  • Changing the background style by setting body selector.

  • Changing the tile container style by setting #container selector.

  • Changing the Load More Data style by setting .js-load-more selector.

  • Changing the AJAX indicator style by setting .spinner-overlay and .spinner selectors.

Tile Structure

The Waterfall widget is mostly composed by tiles - as such it is much easier to customise the Waterfall widget when you are familiar with it's structure.

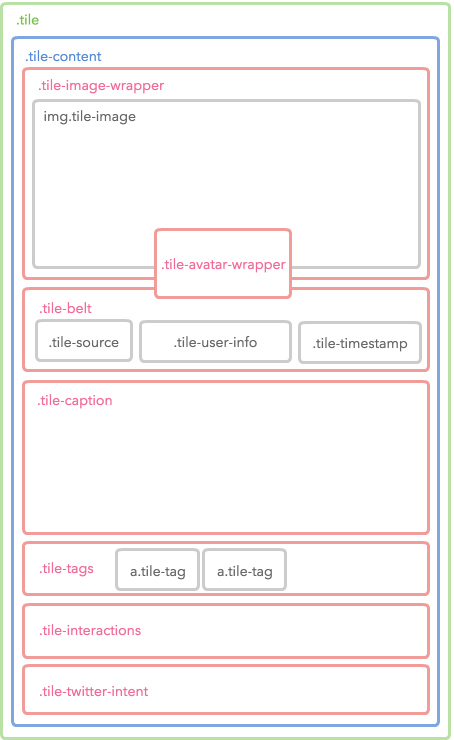

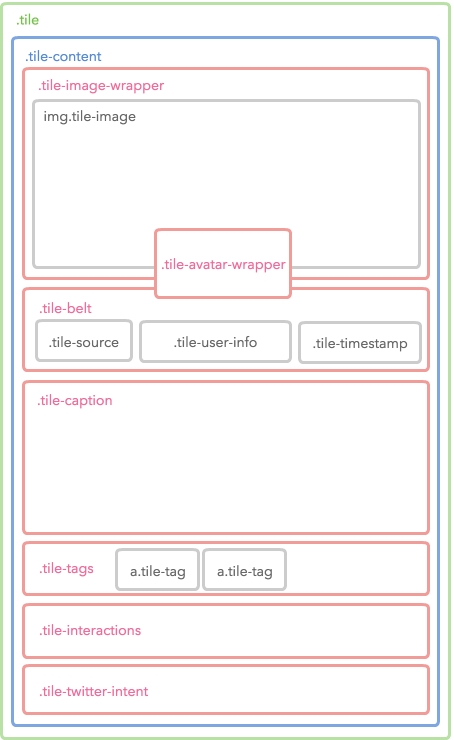

Diagram

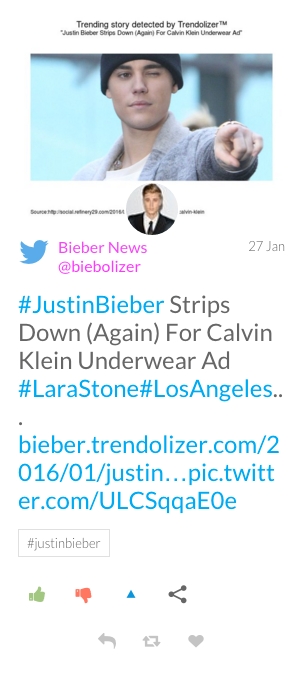

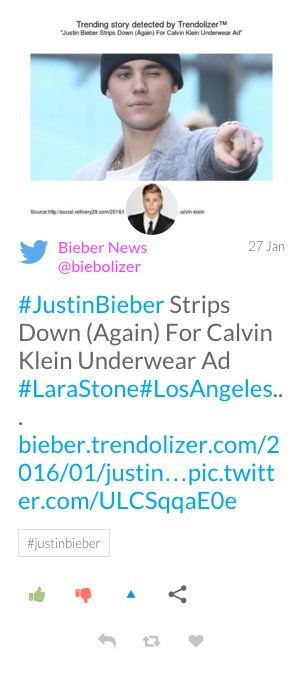

Snapshot

Code

The diagram above only shows until the 4th level. Check the complete Tile structure by referencing the following code.

<div class="tile ">
    <div class="tile-content">
        <div class="tile-image-wrapper">
            <img class="tile-image">
            <div class="tile-media-loading">
                <span class="tile-media-loading-icon"></span>
            </div>
        </div>
        <div class="tile-avatar-wrapper">
            <div class="tile-avatar-placeholder">
                <img>
            </div>
            <a class="tile-avatar-link">
                <img class="tile-avatar-image"/>
            </a>
        </div>
        <div class="tile-belt">
            <div class="tile-source tile-source-twitter">
                <i class="fs fs-twitter"></i>
            </div>
            <div class="tile-timestamp"></div>
            <div class="tile-user-info">
                <div class="tile-user">
                    <a class="tile-user-top">
                        <span class="tile-user-name"></span>
                    </a>
                    <a class="tile-user-bottom">
                        <span class="tile-user-handle"></span>
                    </a>
                </div>
            </div>
        </div>
        <div class="tile-caption"></div>
        <div class="tile-tags">
            <a class="tile-tag"></a>
        </div>
        <div class="tile-interactions">
            <span class="tile-interaction-like">
                <a class="tile-interaction-link">
                    <i class="fs fs-thumbs-up"></i>
                </a>
                <span class="tile-interaction-count"></span>
            </span>
            <span class="tile-interaction-dislike">
                <a class="tile-interaction-link">
                    <i class="fs fs-thumbs-down"></i>
                </a>
                <span class="tile-interaction-count"></span>
            </span>
            <span class="tile-interaction-vote">
                <a class="tile-interaction-link">
                    <i class="fs fs-triangle-up"></i>
                </a>
                <span class="tile-interaction-count"></span>
            </span>
            <span class="tile-interaction-share">
                <a class="tile-interaction-link">
                    <i class="fs fs-share"></i>
                </a>
                <ul class="tile-sharing-expanded">
                    <li>
                        <a class="tile-share-button">
                            <div class="fs fs-facebook"></div>
                        </a>
                    </li>
                    <li>
                        <a class="tile-share-button twitter">
                            <div class="fs fs-twitter"></div>
                        </a>
                    </li>
                    <li>
                        <a class="tile-share-button pinterest">
                            <div class="fs fs-pinterest"></div>
                        </a>
                    </li>
                    <li>
                        <a class="tile-share-button gplus">
                            <div class="fs fs-googleplus"></div>
                        </a>
                    </li>
                    <li>
                        <a class="tile-share-button linkedin">
                            <div class="fs fs-linkedin"></div>
                        </a>
                    </li>
                    <li>
                        <a class="tile-share-button email">
                            <div class="fs fs-envelope"></div>
                        </a>
                    </li>
                    <li>
                        <a class="tile-share-close">
                            <i class="fs fs-close"></i>
                        </a>
                    </li>
                </ul>
            </span>
        </div>
        <div class="tile-twitter-intent">
            <a class="tile-twitter-reply">
                <i class="fs fs-reply"></i>
            </a>
            <a class="tile-twitter-retweet">
                <i class="fs fs-retweet"></i>
            </a>
            <a class="tile-twitter-favorite">
                <i class="fs fs-heart"></i>
            </a>
        </div>
    </div>
</div>

Sample

The following is an example of a customized widget.

<script type="text/javascript">(function (d, id) { if (d.getElementById(id)) return; var t = d.createElement('script'); t.type = 'text/javascript'; t.src = '//assetscdn.stackla.com/media/js/widget/fluid-embed.js'; t.id = id; (document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(t); }(document, 'stackla-widget-js'));</script>

You can use the following CSS/LESS code as your Custom CSS boilerplate.

@import url(https://fonts.googleapis.com/css?family=Lato);

html, body {
    background: #000;
}

.js-load-more {
    background: rgba(51, 102, 153, 0.8);
    border-radius: 4px 4px 0 0;
    bottom: 0;
    display: inline-block;
    font-size: 12px;
    font-weight: bold;
    left: ~"calc(50% - 68px)";
    position: absolute;
    text-transform: uppercase;
    transition: background 1s linear;
    &:hover {
        background: #0198cf;
    }
}

.tile {
    border: none;
    border-radius: 4px;
    &-content {
        margin: 0;
    }
    &-image-wrapper {
        margin-bottom: -60px;
        &:after {
            background: rgba(255, 255, 255, 0.2);
            bottom: 0;
            content: '';
            left: 0;
            position: absolute;
            right: 0;
            top: 0;
            transition: background 0.3s linear;
        }
        &:hover {
            &:after {
                background: rgba(255, 255, 255, 0);
            }
        }
    }
    &-image {
        border-radius: 4px 4px 0 0;
    }
    &-avatar-wrapper {
        top: 14px;
        position: relative;
    }
    &-belt {
        background-color: #eee;
        padding: 15px;
        text-shadow: 0 1px 0 rgba(255, 255, 255, 1);
    }
    &-tags {
        padding: 0 15px;
    }
    &-caption {
        font-family: 'Raleway', sans-serif;
        font-size: 18px !important;
        line-height: 1.5;
        padding: 0 15px;
    }
    &-twitter-intent {
        padding-bottom: 15px;
    }
}

Helpful Resource

You can download a layered PSD to demonstrate our widget .

here
here
LESS CSS pre-processor
