Debugging Mode

Sometimes it’s easier for you, as a developer, to investigate Custom JavaScript issues by viewing the widgets through the Debugging Mode in your browser. Our developers add debugging logs for almost all methods that widgets execute. You can view these logs in your Developer Console using the following methods.

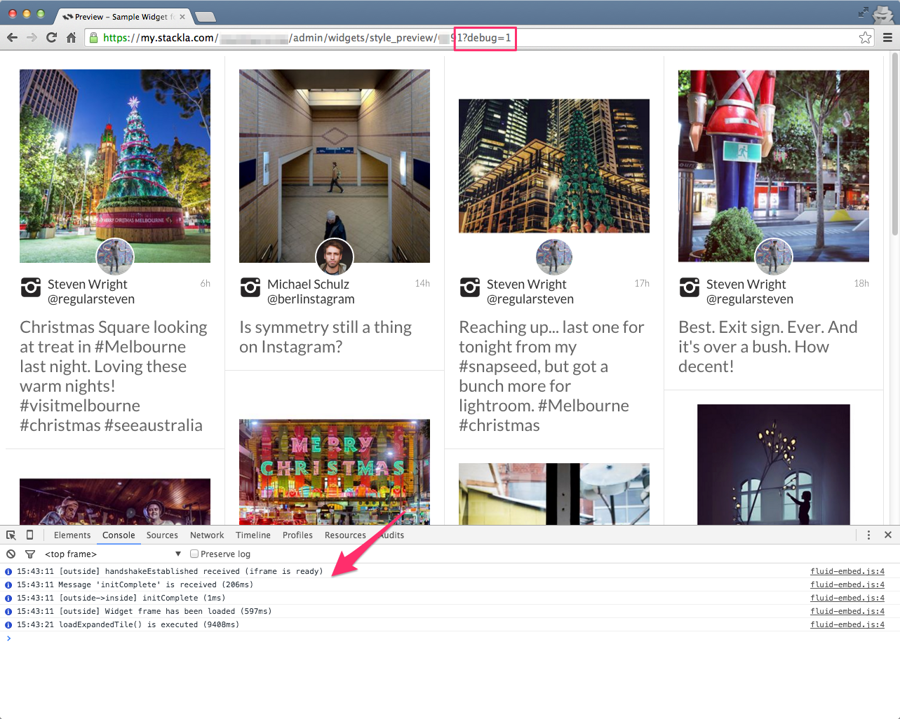

Via URL Parameter

You can enable it by simply adding ?debug=1 as an extra URL parameter.

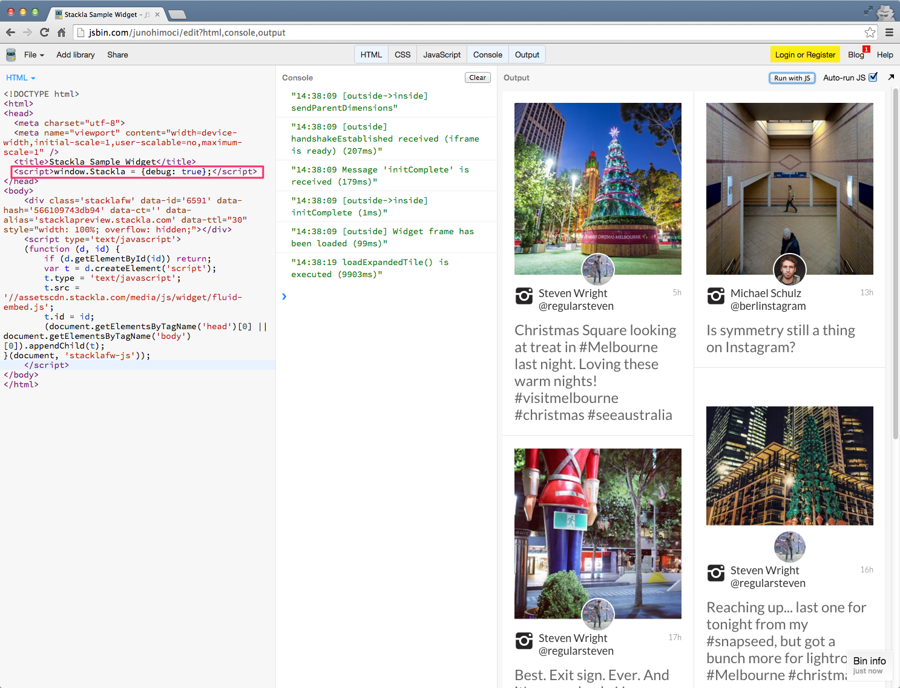

Via Global Variable

Or you can enable it by adding the following JavaScript global variable. You must place it before the widget embed code.

<script>window.Stackla = {debug: true};</script>

|

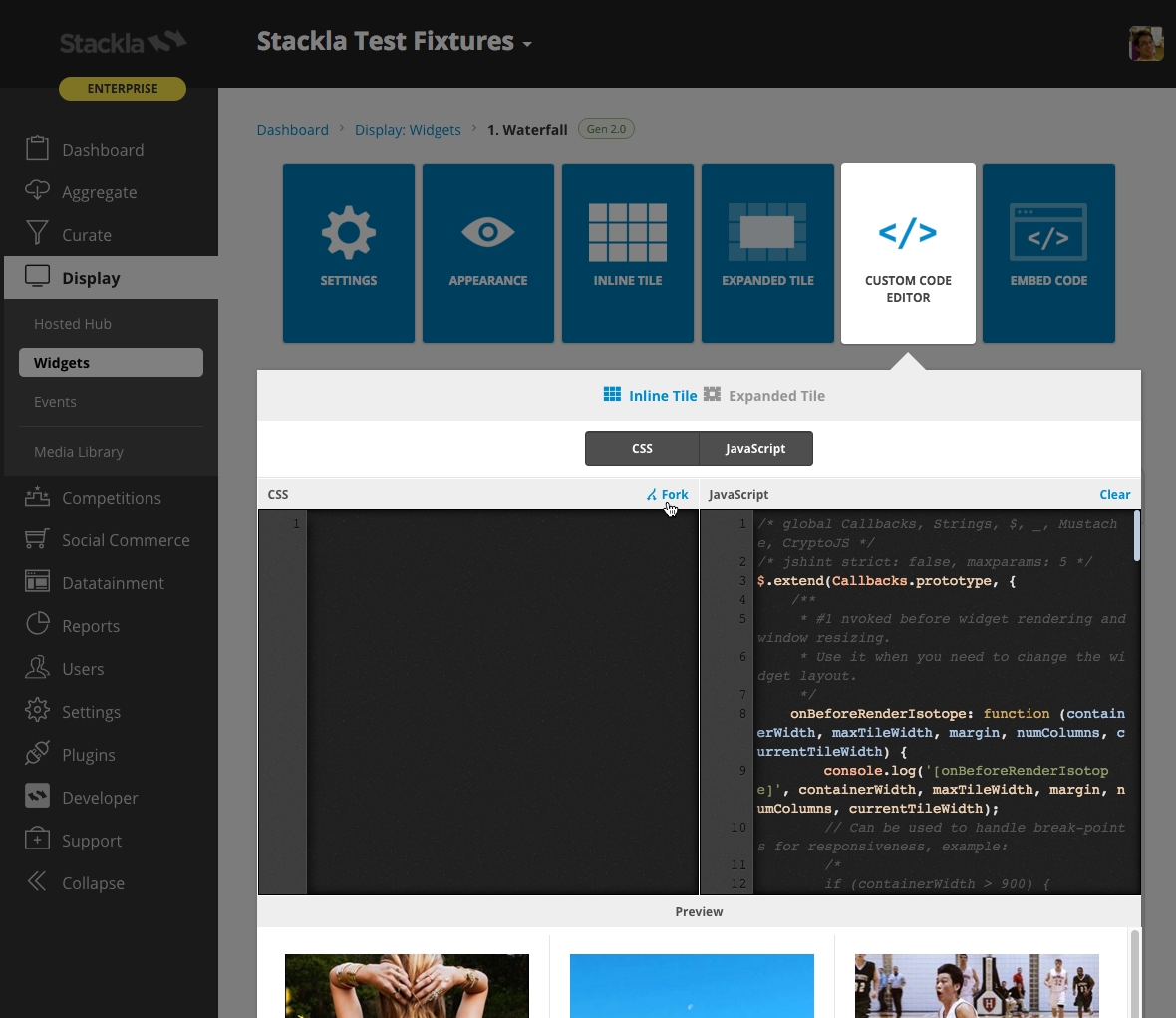

Use the Code Editor

Fork from Nosto's UGC

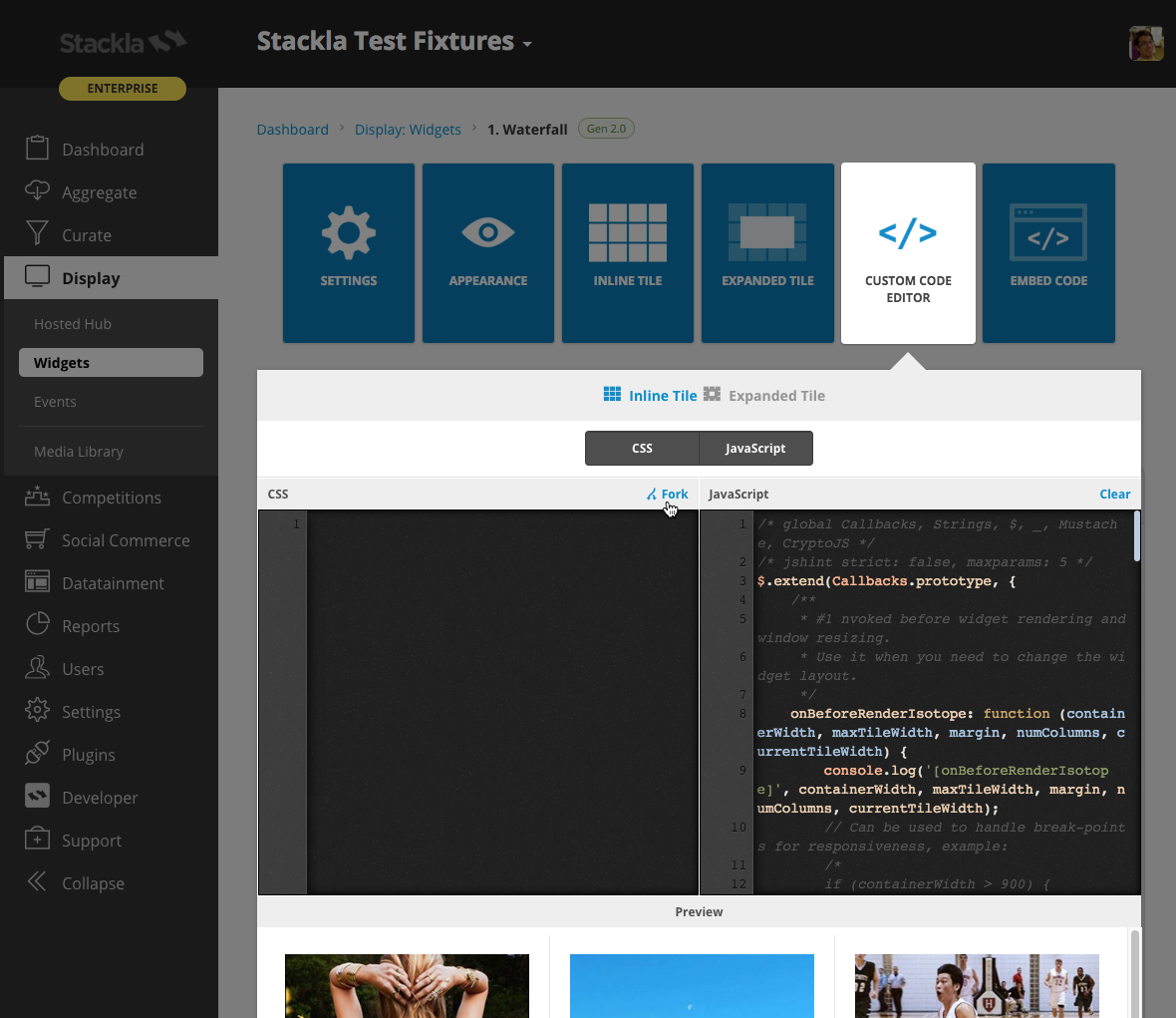

You can now also click the fork link at the top-right corner of each editor pane. This brings the boilerplate code from the Nosto's UGC codebase so that you don't need to write from scratch or copy & paste from our Developer Portal.

Customize Inline Tiles

All inline tiles reside in an Iframe with the widgetapp.stackla.com URL. You can't just write JavaScript on your website to access it because of browser security restrictions. The only way to access it is via our Code Editor.

Boilerplate

$.extend(Callbacks.prototype, {
    onCompleteJsonToHtml: function (tileObject, t) {
        return tileObject;
    },
    onCompleteRenderImage: function(img) {

    },
    // tiles is a jQuery array object, use tiles. each when traversing
    onCompleteAddingToDom: function (tiles) {
    },
    //Call first, before render/window resize
    onBeforeRenderIsotope: function (containerWidth, maxTileWidth, margin, numColumns, currentTileWidth) {
        //Can be used to handle break-points for responsiveness, for example:
        /*
        if (containerWidth > 900) {
            var columns = 6;
            return {
                tileWidth: Math.floor(((containerWidth - margin) / columns) - margin);
                numColumns: columns
            }
        } else {
            var columns = 3;
            return {
                tileWidth: Math.floor(((containerWidth - margin) / columns) - margin);
                numColumns: columns
            }
        }
        */

        // return tile width, the isotope will be init as tile width + margin
        return {
            tileWidth: currentTileWidth,
            numColumns: numColumns
        }
    },
    // call second, before each tile width and height is set
    getTileWidth: function (tile, tileWidth, margin, numColumns) {
        // return tile width
        return tileWidth;
    },
    //Call third, after tile width and height are set
    onCalculateDimensions: function (tile) {

    },
    // After the filtering changed
    onCompleteChangeFilter: function (tiles, prevFilterId, nextFilterId) {

    },
    // Before more tiles are rendered
    onBeforeRenderTiles: function (addedIds, addedData) {

    },
    // After more tiles are rendered
    onCompleteRenderTiles: function ($addedTiles, addedData) {

    },
    // Triggers when it's the end of the scrolling
    onScrollLoad: function (tiles, jsLoading) {

    },
    // Triggers when it's the end of the scrolling
    onScrollEnd: function (tiles, jsLoading) {

    },
    // Triggers when the parent page triggers a customized postMessage
    onMessage: function (type, data) {

    }
});
//======================
// Customisable Strings
//======================
Strings.load_more = 'Load more content';
Strings.scroll_load = 'Loading...';
Strings.scroll_end = 'There is no more content to be displayed.';

Available JavaScript Libraries

  • jQuery: You can access it by using the $ global variable. The current version is 1.7.1.

  • lodash: You can access it by using _ global variable. The current version is 3.10.1.

  • Mustache.js: You can access it by using the Mustache global variable. The current version is 0.8.1.

  • CryptoJS: You can access it by using CryptoJS global variable. The current version is 3.1.2.

Customize Expanded Tile

We would recommend the use of our Expanded Tile Code Editor when customizing your Expanded Tiles. However, as the Widget Expanded Tiles are rendered in their parent page, you can also customize them by adding JavaScript to your parent page HTML.

Boilerplate

// Events
Stackla.WidgetManager
    .on('tileExpand', function (e, data) {
        console.log(e.type, data.expandType,  data.tileData,  data.widgetId);
    })
    .on('beforeExpandedTileOpen', function (e, data) {
        console.log(e.type, data.el, data.tileData,  data.widgetId);
    })
    .on('expandedTileImageLoad', function (e, data) {
        console.log(e.type, data.el, data.tileEl, data.widgetId);
    })
    .on('beforeExpandedTileImageResize', function (e, data) {
        console.log(e.type, data.sizes, data.el, data.tileEl, data.widgetId);
    })
    .on('expandedTileOpen', function (e, data) {
        console.log(e.type, data.el, data.tileData,  data.widgetId);
    })
    .on('expandedTileImageResize', function (e, data) {
        console.log(e.type, data.sizes, data.el, data.tileEl, data.widgetId);
    })
    .on('userClick', function (e, data) {
        console.log(e.type, data.tileData, data.widgetId);
    })
    .on('shareClick', function (e, data) {
        console.log(e.type, data.shareNetwok, data.tileData, data.widgetId);
    })
    .on('moreLoad', function (e, data) {
        console.log(e.type, data.page, data.widgetId);
    })
    .on('shopspotFlyoutShow', function (e, data) {
        console.log(e.type, data.productTag, data.tileData, data.widgetId);
    })
    .on('shopspotActionClick', function (e, data) {
        console.log(e.type, data.productTag, data.tileData, data.widgetId);
    });

// Callbacks
var widgetId = '-1'; // TODO - Change to your widget ID.
window.StacklaFluidWidgetProperties = {};
window.StacklaFluidWidgetProperties[widgetId] = {
    callbacks: {
        'onAfterWidgetLoaded': function () {
            console.log('onAfterWidgetLoaded');
        },
        'onBeforeExpandedTileOpen': function (tile, data) {
            console.log('onBeforeExpandedTileOpen');
            return tile;
        },
        'onAfterExpandedTileOpen': function () {
            console.log('onAfterExpandedTileOpen');
        },
        'onBeforeExpandedTileImageResize': function () {
            console.log('onBeforeExpandedTileImageResize');
        },
        'onAfterExpandedTileImageResize': function () {
            console.log('onAfterExpandedTileImageResize');
        },
        'onAfterExpandedTileImageLoad': function () {
            console.log('onAfterExpandedTileImageLoad');
        }
    }
};

// Methods
// Stackla.WidgetManager.postMessage(typeName, data, [widgetId])
// Stackla.WidgetManager.sync();
// Stackla.WidgetManager.search(widgetId, keyword);
// Stackla.WidgetManager.changeFilter(widgetId, filterId);

Available JavaScript Libraries

  • jQuery: You can access it by using the $tackla global variable. The version is 1.10.2.

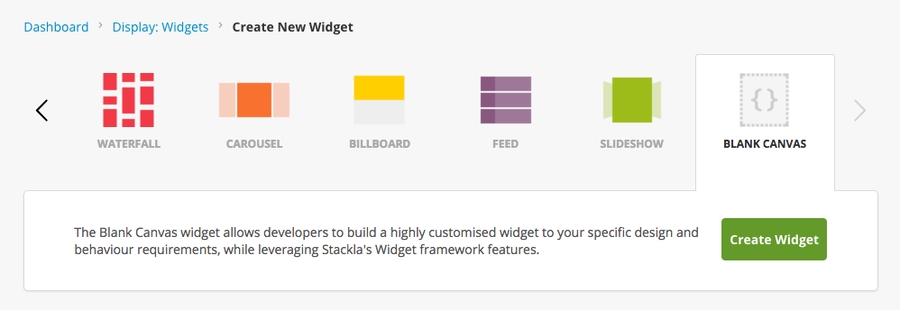

Create Your Widget - Blank Canvas

We provide a Blank Canvas widget so that you can build your widget when you find that the current UGC Widgets don't fit your customization needs.

Boilerplate

To quickly get started with the Blank Canvas widget customizations, you can copy and paste the following code into the Custom Code Editor in Nosto's UGC.

Custom Layout

<div class="track">
    <div class="container">
        {{#tiles}}
            {{>tpl-tile}}
        {{/tiles}}
    </div>
</div>

Custom Tile (#tpl-tile)

<div class="tile">
    <div class="hd">#{{id}}</div>
    <div class="bd">{{message}}</div>
    {{#image}}
    <div class="ft">
        <img src="{{image}}" width="120"/>
    </div>
    {{/image}}
</div>

Custom JavaScript

// Load tiles data from selected filter
Stackla.loadTilesByFilter(function (tiles) {
    // Render the layout template
    Stackla.render({tiles: tiles});
});

Custom CSS

@import url(https://fonts.googleapis.com/css?family=Open+Sans);
body {
    background: #ccc;
    padding: 10px 0 0 10px;
    font-family: 'Open Sans', sans-serif;
    -webkit-font-smoothing: antialiased;
    -moz-osx-font-smoothing: grayscale;
}
.tile {
    background: #fff;
    border: solid 1px #ccc;
    color: #666;
    font-size: 13px;
    padding: 10px;
    margin-right: 10px;
    margin-bottom: 10px;
    .hd {
        margin-bottom: 10px;
    }
    .bd {
        color: #333;
        font-size: 16px;
    }
}

You can use the Code Editor to modify both your Custom CSS, HTML and JavaScript. The CSS editor supports . That means you can use both traditional CSS syntax and the better LESS syntax.

To quickly get started with Custom Expanded Tile JavaScript, you can or copy & paste the following code into the editor.

For more information, please check the documentation.

To quickly get started with Custom Expanded Tile JavaScript, you can or copy and paste the following code into the editor.

For more information, please check the and documentation.

For more information, please check the documentation.

LESS CSS pre-processor
Widget Inline Tile JavaScript API
Blank Canvas JavaScript API
